Avanti has produced ladders since 1885, and for more than 2 decades Avanti Wind Systems has produced ladders in aluminum for the Wind Turbine Industry. With great success – Avanti’s ladders can be found in turbine towers all over the world.

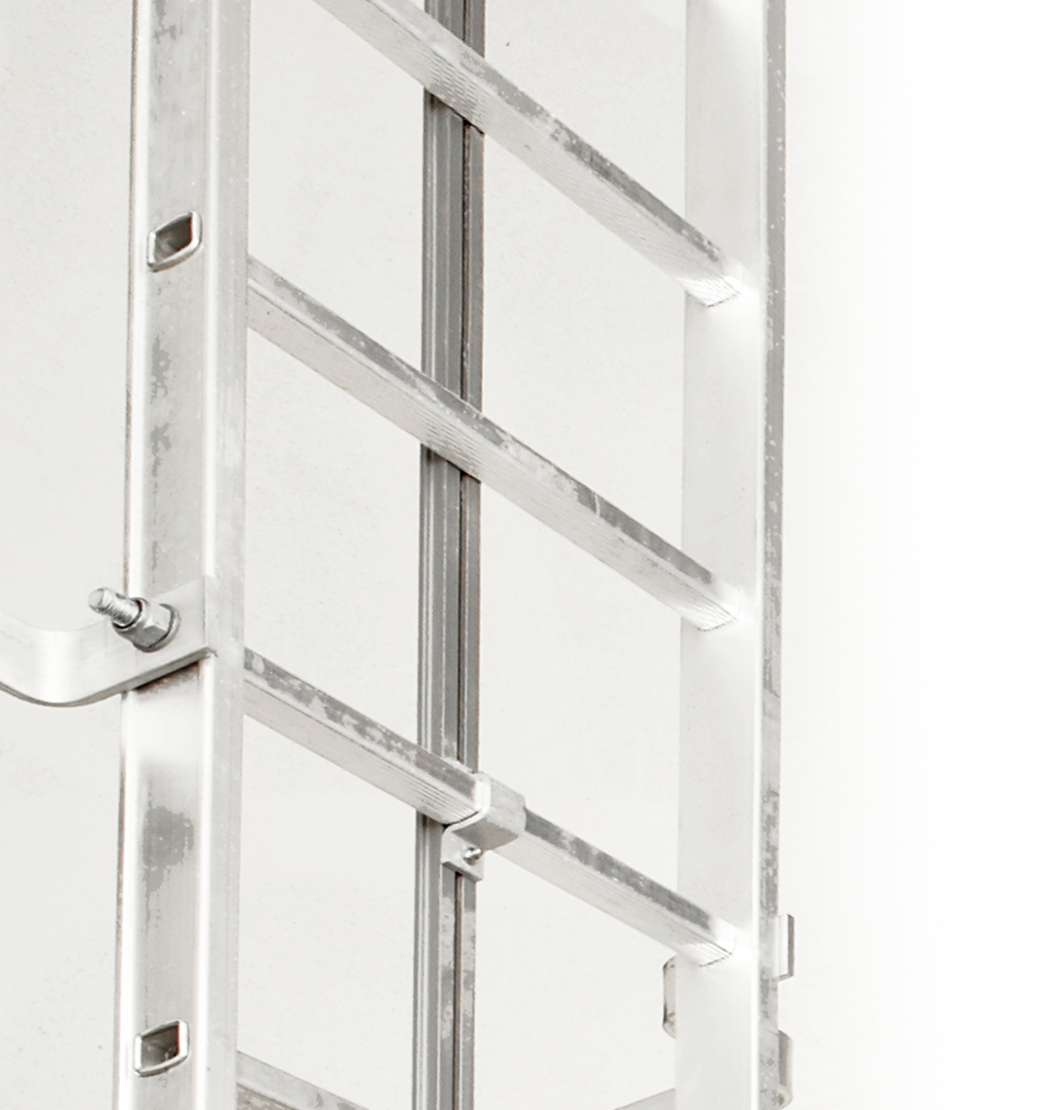

The Avanti Ladder is a safe and rigid structure. The design is optimized ensuring strength in the stiles, in the rungs and in the connections between stiles and rungs. Avanti never makes any compromise when it comes to safety.
The ladder can be assembled from top to bottom in the turbine tower with either fish plates or in addition to these with special stile connectors – depending on the method of installation.
The Avanti Ladder can be installed with or without Avanti Fall Protection System. Part of that is a rail mounted in the center of the ladder. The system can also easily be mounted on the ladder when the ladder is installed in the tower.

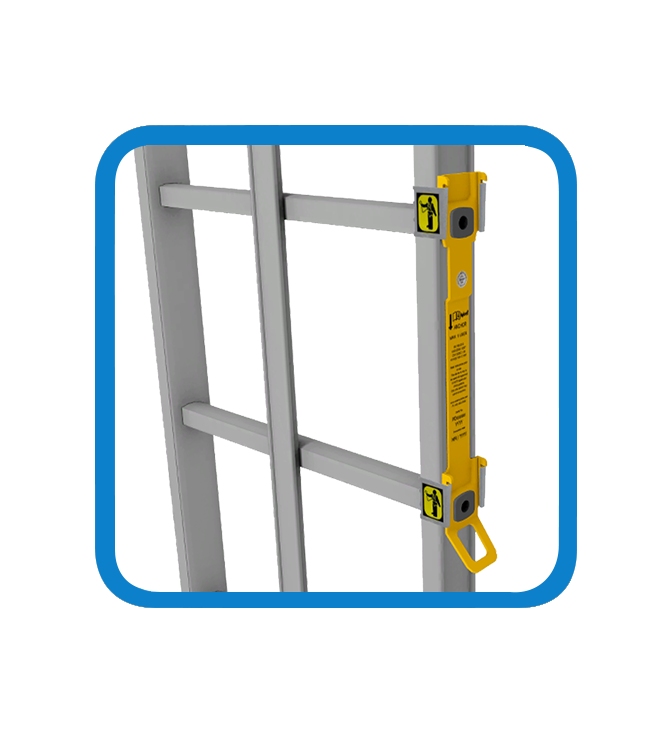

Avanti can supply a large range of accessories to the ladder system. Avanti Anchor Point is developed by Avanti and can be mounted anywhere on the ladder offering the technicians a safe point to which they can connect themselves when working from the ladder.
In Europe it is required by law that there is a resting platform for every 6 meters. Avanti has developed a collapsible resting platform, which easily can be mounted on the ladder.
The ladder is made of aluminum – and it not only used in wind turbines. The Avanti Ladder can be installed inside and outside anywhere you need a safe and easy mounted ladder system. Avanti’s engineers will be happy to work with you to find a safe and cost efficient solution.
All parts are hot dip galvanised steel or aluminium tread plate with a C4H corrosion resistance, which increases the lifetime of the parts.

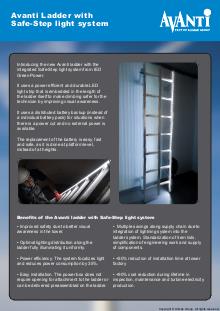

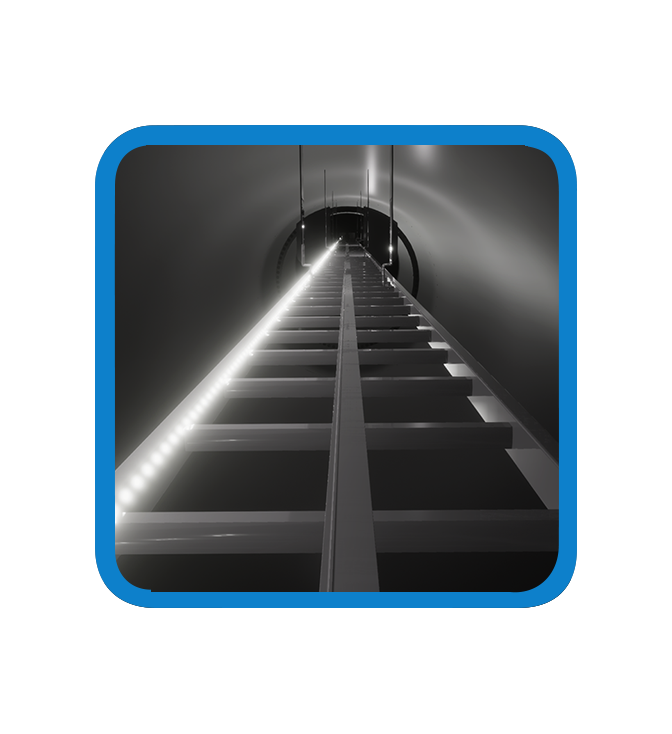

Introducing the new Avanti ladder with the integrated Safe-Step light system from IED Green Power.
It uses a power efficient and durable LED light strip that is embedded in the length of the ladder itself to make climbing safer for the technician by improving visual awareness.
It uses a distributed battery backup (instead of a individual battery pack) for situations when there is a power cut and no external power is available.
The replacement of the battery is easy, fast and safe, as it is done at platform level, instead of at heights.
• Improved safety due to better visual awareness in the tower.
• Optimal lighting distribution along the ladder fully illuminating it uniformly.
• Power efficiency. The system focalizes light and reduces power consumption by 35%.
• Easy installation. The power box does not require opening for attachment to the ladder or can be delivered preassembled on the ladder.
• Multiple savings along supply chain due to integration of lightning system into the ladder system. Standarization of item lists,
simplification of engineering work and supply of components.
• +50% reduction of installation time at tower factory.
• +90% cost reduction during lifetime in inspection, maintenance and turbine electricity production.
